Zerynth Edge Devices

Versatile data acquisition units designed to be seamlessly integrated into both old and new generation industrial machinery.

Download the Brochure

Zerynth Edge Devices

Versatile data acquisition units designed to be seamlessly integrated into both old and new generation industrial machinery.

Download the Brochure

4ZeroBox
Industrial IoT device for data acquisition, monitoring and control of industrial machines.

4ZeroBox Mobile

4ZeroBox Mobile
Industrial IoT device for asset monitoring with Narrow-Band connectivity.

4ZeroBox Lite
Compact, entry-level Industrial IoT device for data acquisition and machine monitoring.

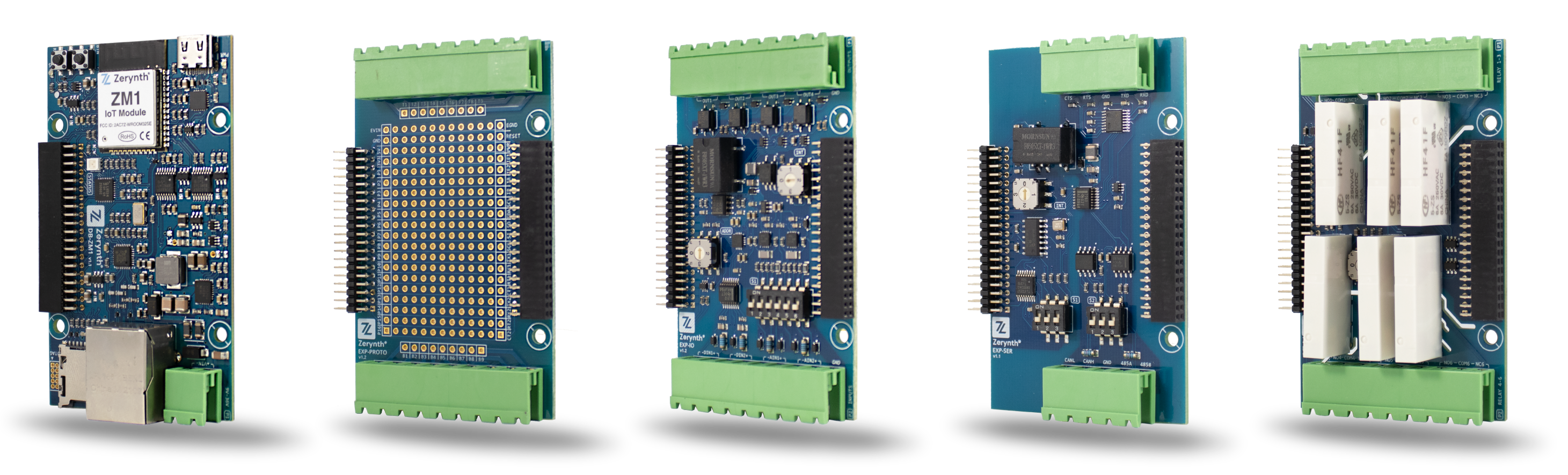

Expansion Boards

Modular, industrial-grade, and production-ready expansion modules

Zerynth Edge Devices allow a seamless connection with the Zerynth Expansion Boards. The expansion modular system enables you to quickly add functionalities based on your needs.

The boards are connected through the zBUS and seamlessly connect to your edge device. zBUS is a standard used to interface different boards and sensors in a stable and efficient way.

Expansion Boards

Modular, industrial-grade, and production-ready expansion modules

Zerynth Edge Devices allow a seamless connection with the Zerynth Expansion Boards. The expansion modular system enables you to quickly add functionalities based on your needs.

The boards are connected through the zBUS and seamlessly connect to your edge device. zBUS is a standard used to interface different boards and sensors in a stable and efficient way.

EXP-CONNECT

Expansion Board with analog and digital inputs and outputs.

EXP-AIN

Expansion Board with 8 industrial analog sensor channels.

EXP-PROTO

Expansion board for any connection.

EXP-IO

Expansion Board with analog and digital inputs and outputs.

EXP-RELAY

Expansion Board with six Electromagnetic Relays.

EXP-SER

Expansion Board with CAN, RS485 and RS232 Interfaces.

EXP-CONNECT

Expansion Board with analog and digital inputs and outputs.

EXP-AIN

Expansion Board with 8 industrial analog sensor channels.

EXP-IO

Expansion Board with analog and digital inputs and outputs.

EXP-RELAY

Expansion Board with six Electromagnetic Relays.

EXP-SER

Expansion Board with CAN, RS485 and RS232 Interfaces.

EXP-PROTO

Expansion board for any connection.

EXP-CONNECT

Expansion Board with analog and digital inputs and outputs.

EXP-AIN

Expansion Board with 8 industrial analog sensor channels.

EXP-IO

Expansion Board with analog and digital inputs and outputs.

EXP-RELAY

Expansion Board with six Electromagnetic Relays.

EXP-SER

Expansion Board with CAN, RS485 and RS232 Interfaces.

EXP-PROTO

Expansion board for any connection.

Technical Features Comparison

Feature Zerynth Edge Devices Zerynth Expansions
4ZeroBox Lite 4ZeroBox 4ZeroBox Mobile EXP-IO EXP-AIN EXP-Relay EXP-SER EXP-Connect
Processor ZM1 ZM1 ZM1 NO, slave device NO, slave device NO, slave device NO, slave device NO, slave device
Power supply 9-36V DC 9-36V DC 9-36V DC from zBUS from zBUS from zBUS from zBUS from zBUS
DIN Spaces 6 9 6 3 3 3 3 3
Analog Sensors Channels 2 generic 4x resistive
4x 0-10V/4-20mA
3x current coil
6 generic 2 generic 8 generic
Opto Isolated Input 2 2 2
Relay (220V) 2 6
Solid State Relay (max 36V) 4 2 2 2
CAN, RS232, RS485
RGB Status LED
USB Type C Micro USB C
User Button
WiFi + BLE
Ethernet ports 1 1
Cellular Connection NB-IOT+2G NB-IOT+2G
zBUS daisy chain daisy chain daisy chain daisy chain daisy chain

Technical Features Comparison

Feature Zerynth Edge Devices Zerynth Expansions
4ZeroBox Lite 4ZeroBox 4ZeroBox Mobile EXP-IO EXP-AIN EXP-Relay EXP-SER EXP-Connect
Processor ZM1 ZM1 ZM1 NO, slave device NO, slave device NO, slave device NO, slave device NO, slave device
Power supply 9-36V DC 9-36V DC 9-36V DC from zBUS from zBUS from zBUS from zBUS from zBUS
DIN Spaces 6 9 6 3 3 3 3 3
Analog Sensors
Channels
2 generic 4x resistive
4x 0-10V/4-20mA
3x current coil
6 generic 2 generic 8 generic
Opto Isolated
Input
2 2 2
Relay (220V) 2 6
Solid State Relay
(max 36V)
4 2 2 2
CAN, RS232, RS485
RGB Status LED
USB Type C Micro USB C
User Button
WiFi + BLE
Ethernet ports 1 1
Cellular
Connection
NB-IOT+2G NB-IOT+2G
zBUS daisy chain daisy chain daisy chain daisy chain daisy chain
